Analysis of an Algorithm:

• Algorithm analysis is the process of evaluating an algorithm's efficiency.
• The goal is to predict performance without running the program, so it works efficiently for large inputs.
• The two main aspects of algorithm analysis are:
  • Time Complexity - How long an algorithm takes to run as input size increases.
  • Space Complexity - How much memory an algorithm uses as input size increases.

Time Complexity

• Time Complexity is the amount of time an algorithm takes to complete as the input size (n) increases.

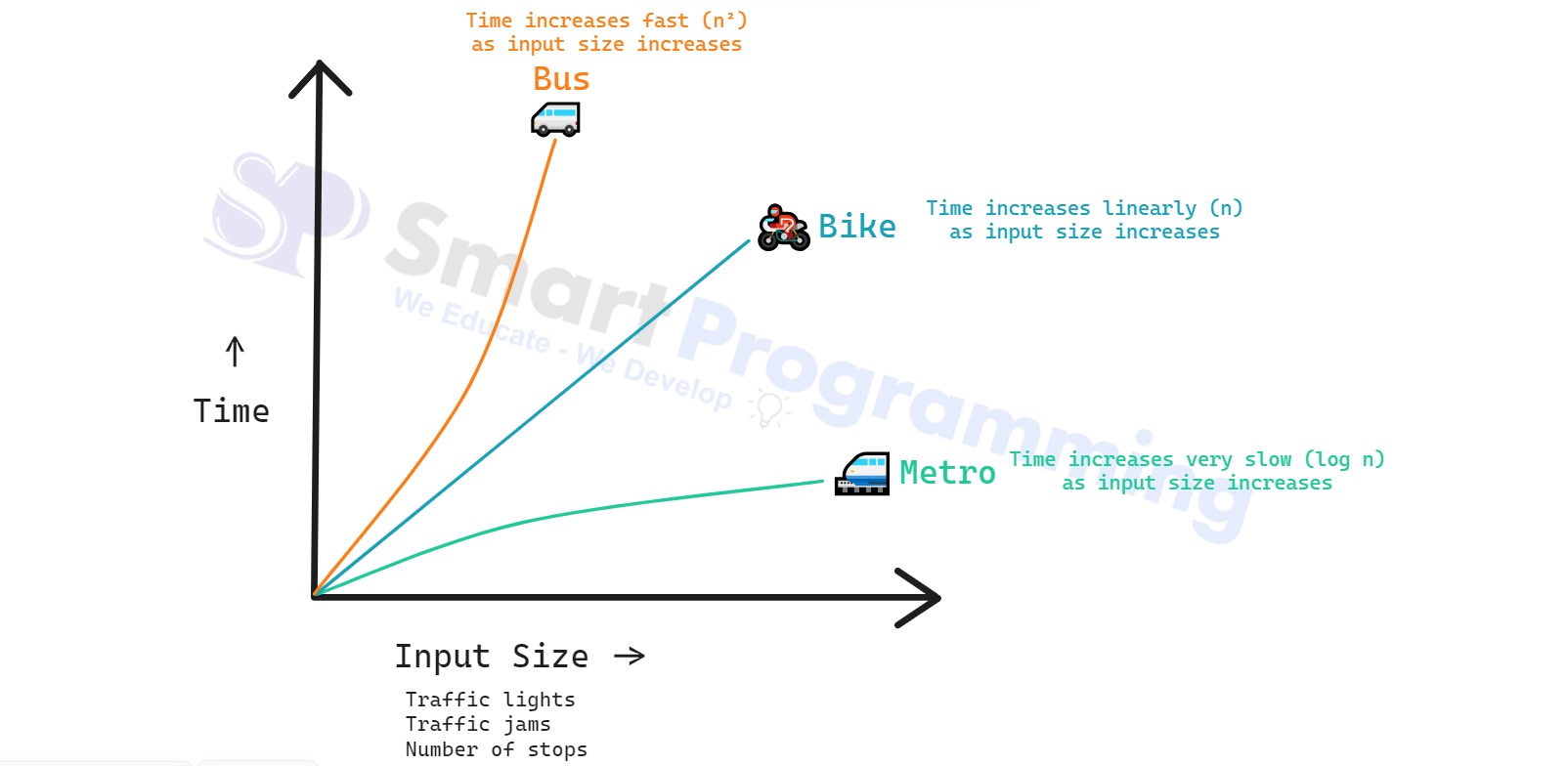

• Real World Example:
  • Time complexity can be understood with the example of traveling from your home to the office. Here, the input size is affected by factors like:
    • Traffic lights
    • Traffic jams
    • Number of stops
  • Now, let's compare different modes of transport:
    • Metro - Even if distance increases, the time taken increases slowly. Like a metro, you can reach faster because it has fewer stops and no traffic.
    • Bike - Faster than a bus in small traffic but slows down as traffic increases.
    • Bus - Takes more time, especially with more stops and heavy traffic, similar to higher time complexity.
  •
  • Conclusion: Just like metro, bike, and bus have different speeds depending on traffic, algorithms have different time complexities depending on input size.

• Project Example :
  • There are two shopping applications
  • Both use different algorithms to process orders.
  • What is Input Size (n)?
    • Input size means the number of items, orders, or data elements the algorithm needs to process.
    • Example: In a shopping app, input size could be the number of products ordered during a sale.
    • As n increases , execution time may increase depending on the algorithm's efficiency.
  • Below is the table showing the time taken by each algorithm for different input sizes (n):

    Example Scenario	Input Size (n)	Algorithm A	Algorithm B
    Small orders (Normal day)	100 orders	takes 50 ms of time	takes 70 ms of time
    Moderate sale event	1,000 orders	takes 500 ms of time	takes 500 ms of time
    Big festive sale	10,000 orders	takes 5,000 ms of time	takes 3,000 ms of time
    Massive flash sale	1,00,000 orders	takes 50,000 ms of time	takes 15,000 ms of time

  • As the input size increases, Algorithm A takes more time compared to Algorithm B.
  • This means Algorithm B is more efficient for larger inputs.
  • Therefore, we can say that Algorithm B has better Time Complexity than Algorithm A.

• Why Time Complexity is Important ?
  • It determines the speed of the algorithm for large inputs.
  • It helps to compare the different algorithms for the same problem.

• How Time Complexity is Measured ?
  • Count how the number of basic operations (assignments, comparisons, loops, etc.) grows with the input size n, ignoring constants and machine-specific factors.
  • Use asymptotic notations to represent the growth of time complexity:
    • Big O Notation (O) - Describes the upper bound (commonly used for worst-case).
    • Omega Notation (Ω) - Describes the lower bound (sometimes used for best-case).
    • Theta Notation (Θ) - Describes the tight bound (exact growth, not average case).

• Common Time Complexities :
  • Below is the table showing common time complexities and their growth rates:

    Symbol	Name	Description	Efficiency	Notes / Examples
    O(1)	Constant Time	Execution time does not depend on input size.	✅ Excellent	Accessing an array element, HashMap get()
    O(log n)	Logarithmic Time	Time grows slowly as input size increases.	✅ Very Good	Binary Search, balanced BST operations
    O(n)	Linear Time	Time grows directly in proportion to input size.	👍 Good	Traversing an array or list
    O(n log n)	Linearithmic Time	Slightly worse than linear but better than quadratic.	⚖️ Acceptable	Merge Sort, Quick Sort (average case)
    O(n²)	Quadratic Time	Time grows proportionally to the square of input size.	❌ Poor	Nested loops (e.g., Bubble Sort)
    O(n³)	Cubic Time	Time grows cubically with input size.	❌ Very Poor	Triple nested loops
    O(2ⁿ)	Exponential Time	Time doubles with every additional input element.	🚫 Extremely Bad	Recursive Fibonacci without memoization
    O(n!)	Factorial Time	Time grows factorially with input size.	🚫 Worst	Generating all permutations

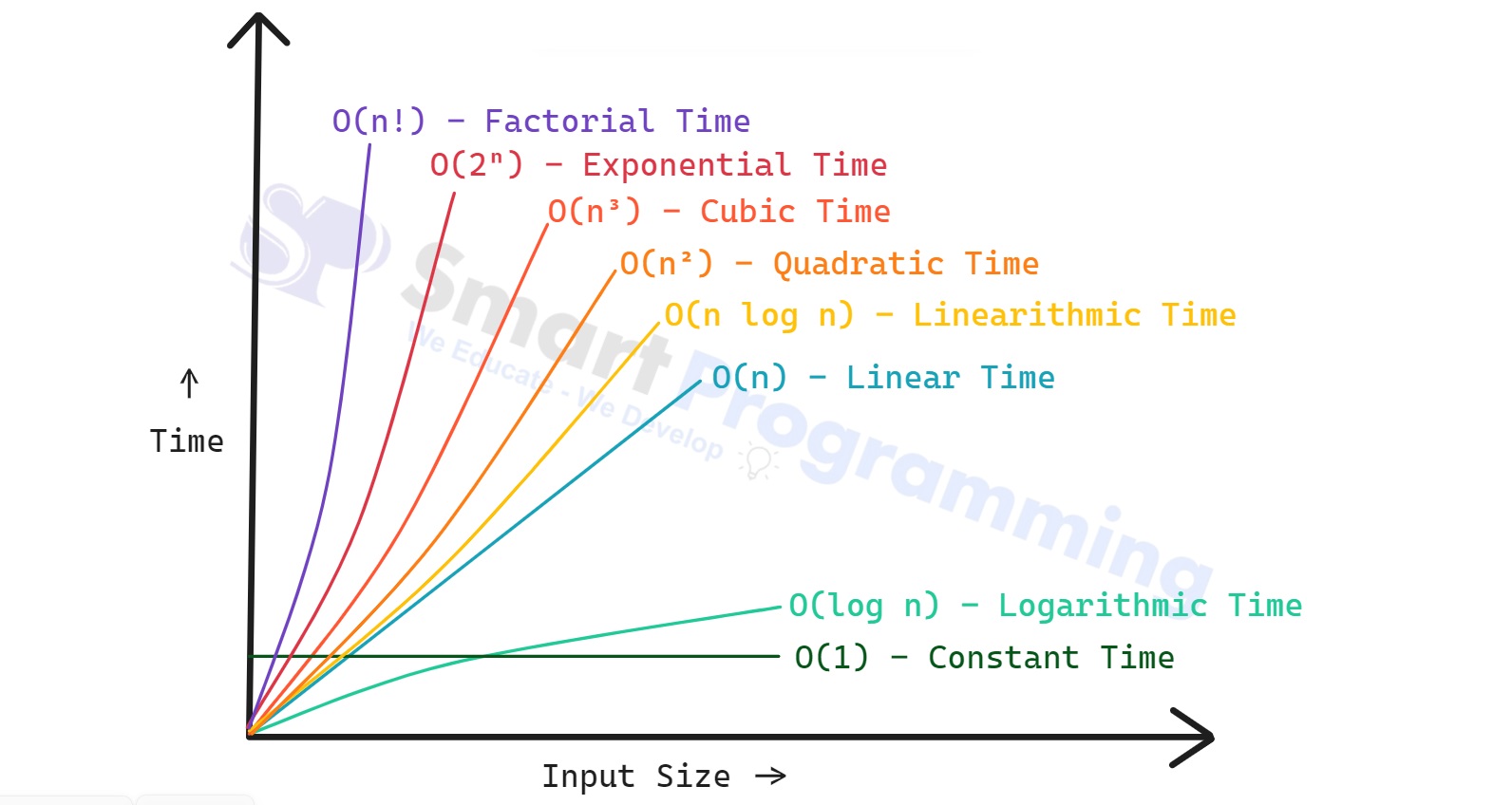

  • Below is the chart showing common time complexities and their growth rates:
  • Note:

    • Here, we have represented all time complexities using Big O notation (O) to denote the worst-case performance of algorithms.
    • However, time complexities can also be expressed using Omega (Ω) for the best-case and Theta (Θ) for the average or tight bound scenarios.

Space Complexity

• Space Complexity is the amount of memory an algorithm uses as the input size (n) increases.
• It includes both the auxiliary space (temporary space used by the algorithm) and the input space (space required to store the input data).

• Real World Example:
  • Space complexity can be understood with the example of a library. Here, the input size is affected by factors like:
    • Number of books
    • Size of each book
    • Number of shelves
  • Now, let's compare different storage methods:
    • Digital Library - Takes less space as it stores books in digital format.
    • Physical Library - Takes more space as it stores physical books.
  • Just like digital libraries take less space, algorithms with lower space complexity use less memory.

• Project Example :
  • There are two photo-editing applications
  • Both use different algorithms to apply filters to images.
  • What is Input Size (n)?
    • Input size means the size of the image or the amount of data the algorithm needs to process.
    • Example: In a photo-editing app, input size could be the file size of the image being edited.
    • As n increases , memory usage may increase depending on the algorithm's efficiency.
  • Below is the table showing the memory used by each algorithm for different input sizes (n):

    Example Scenario	Input Size (n)	Algorithm X	Algorithm Y
    Small image (Profile pic)	1 MB	uses 5 MB memory	uses 4 MB memory
    Medium image (Phone photo)	5 MB	uses 25 MB memory	uses 15 MB memory
    Large image (DSLR photo)	20 MB	uses 100 MB memory	uses 50 MB memory
    Ultra HD image (Poster)	100 MB	uses 500 MB memory	uses 300 MB memory

  • As the input size increases, Algorithm X uses more memory compared to Algorithm Y.
  • This means Algorithm Y is more memory-efficient for larger inputs.
  • Therefore, we can say that Algorithm Y has better Space Complexity than Algorithm X.

• Why Space Complexity is Important ?
  • It determines the memory usage of the algorithm for different input sizes.
  • It helps to choose algorithms that are more memory-efficient, especially for large datasets or devices with limited RAM.

• How Space Complexity is Measured ?
  • Count how much memory is required by the algorithm, including:
    • Memory for input data (input size n).
    • Memory for variables and constants.
    • Memory for temporary data structures like arrays, lists, or stacks.
  • Represent the growth of memory usage with asymptotic notations
    • Big O Notation (O) - Represents the worst-case memory usage.
    • Theta Notation (Θ) - Represents the average-case memory usage.
    • Omega Notation (Ω) - Represents the best-case memory usage.
